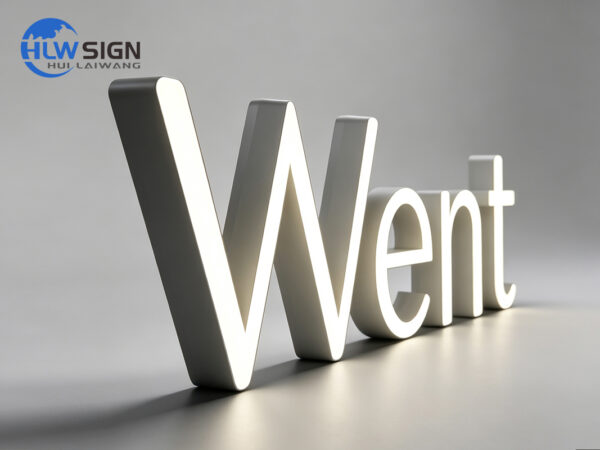

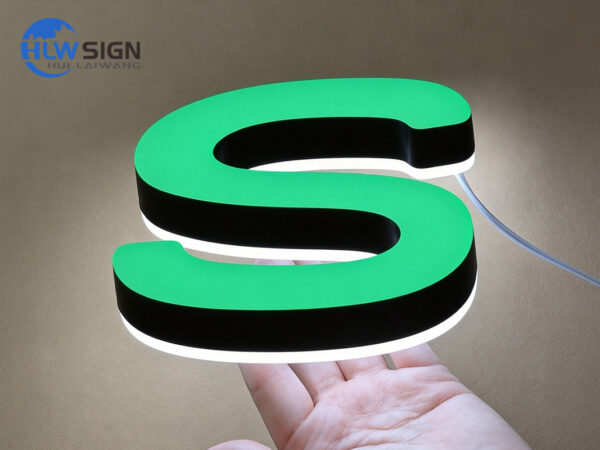

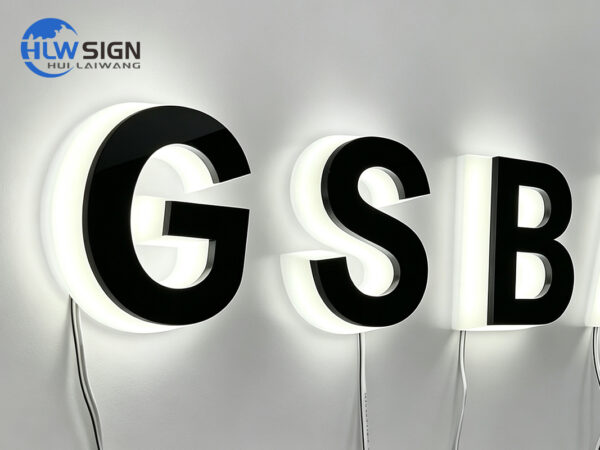

Acrylic Led Sign

This Acrylic Led Sign is manufactured to order rather than picked from a catalogue: the size, finish, lighting and fixing method are all set to your site. Mounting options include freestanding, hanging, wall mount, and the fixing hardware is specified for the surface you have. Returns are formed from stainless steel, galvanized sheet, acrylic, and the face material is chosen to suit the lighting. Send the dimensions and a photo of the site and we will confirm the build on a drawing before production — MOQ is one piece and standard lead time is 7–15 working days after approval.

Acrylic LED Channel Letter Specification

Acrylic Led sign offers an elegant signage solution for designs requiring compact dimensions, fine details, and consistent brightness. Manufactured using high-quality acrylic and precision processing, they provide smooth light diffusion, clean edges, and a modern three-dimensional appearance. Acrylic letters construction and integrated LED lighting deliver smooth, uniform illumination while maintaining a slim and lightweight profile.

• Materials

• 20mm thick acrylic front panel

• 5/8mm thick acrylic back plate

• LED light strip

• Low-voltage power supply

• Wiring and installation accessories

• Manufacturing & Dimensional Specifications

Stroke Detail

Precision CNC carving, minimum stroke width as fine as 5mm, with sharp, clean lines and perfect definition.

Character Size

• Chinese characters: ≥5cm in height

• English characters: ≥3cm in height

• Custom sizes over 50cm are technically possible but not recommended due to potential trade-offs in structural balance and 3D visual effect.

• Overall Thickness: 25mm, balancing structural stability with a sleek aesthetic.

Small characters can be produced with clear contours, but extremely thin strokes or intricate details may need to be adjusted to accommodate the internal LED structure for acrylic led sign.

• Lighting Options

Multiple lighting modes available to meet diverse design needs

• Front-lit

• Side-lit

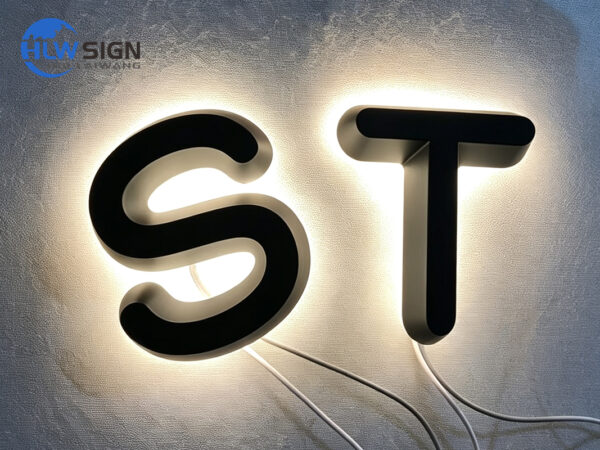

• Back-lit

• Double-sided lit

• Full perimeter/edge-lit

• Color and Finish Options

Front Panel

The front panel color of acrylic letters with led lights can be selected from our official acrylic color chart to provide a clean, consistent appearance.

Available options may include

• Solid colors
• Transparent colors
• Frosted finishes
• Custom UV-printed colors
• White acrylic with colored LED illumination

Sides and Edges

The exposed sides or edges can be customized according to the client’s Pantone reference or approved color sample.

• Product Advantages & Limitations

√ Advantages

• Ultra-fine Detail Capability: Complex fonts and characters as small as 5cm can be illuminated with high clarity.

• Premium Appearance: Compact, elegant design with a modern, high-end look, suitable for both indoor and outdoor use.

·Precision Replication: CNC carved for a 1:1 faithful reproduction of your design, even with intricate patterns and strokes.

× Limitations Large Size Restriction: For characters over 50cm, uneven lighting, visible light shadows, and reduced 3D effect may occur, affecting the final look.

• Application Scenarios

Acrylic letters with led lights are ideal for high-end venues, fashion retail malls, F&B spaces, brand image walls, and more to enhance your brand’s visual appeal and charm.
